BGP Multipath

BGP can do load-sharing, pretty much similar to OSPF and EIGRP, by installing two or more entries in the routing table and leave the rest to CEF. BGP can learn more than one route and install them in the BGP table but only the best path will be installed in the routing table based on best path selection rules:

     1.       Weight (highest)

     2.       Local preference (highest)

     3.       Originate (network or redistribute>aggregate commands)

     4.       AS-Path (shortest)

     5.       Origin code (IGP>EGP>incomplete)

     6.       MED (lowest)

     7.       Path (External>Internal)

     8.       Multipath (Yes/No)

     9.       Router-ID (lowest)

So for a BGP peer which learns two or more paths with the same attributes the tie breaker in most cases will be the Router-ID and this can be changes by activating the multipath option and allow the process to install more than one best path.

This is the topology I used:

 These are the roles in the following topology:

R1, R2, R3 and R4 are all PE routers, while R5 is P router which also act as route-reflector. All routers are part of the SP network which runs OSPF, MPLS and MP-BGP.

R8, R9 and R10 are part of the main site of customer RED, both R8 and R9 are eBGP peer with the relevant SP routers. Internally they run static routes toward R10 with HSRP between them where R9 is the active router. R10 has default route to HSRP IP 10.1.10.254.

R6 and R7 are branch routers (multi and single homed) which runs eBGP with the SP routers.

R7, which is multi-homed branch router, is peering with R1 and R4:

R7#show ip bgp summary BGP router identifier 192.168.73.1, local AS number 65007 BGP table version is 44, main routing table version 44 15 network entries using 2160 bytes of memory 27 path entries using 2160 bytes of memory 6/6 BGP path/bestpath attribute entries using 864 bytes of memory 3 BGP AS-PATH entries using 72 bytes of memory 0 BGP route-map cache entries using 0 bytes of memory 0 BGP filter-list cache entries using 0 bytes of memory BGP using 5256 total bytes of memory BGP activity 16/1 prefixes, 29/2 paths, scan interval 60 secs Neighbor        V           AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd 10.1.17.1       4        65000     276     275       44    0    0 03:41:22       12 10.1.47.4       4        65000     294     295       44    0    0 03:40:08       12

We can see that he learns R10 networks from both R1 and R4:

R7#show ip bgp BGP table version is 44, local router ID is 192.168.73.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,               r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,               x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found      Network          Next Hop            Metric LocPrf Weight Path  *   0.0.0.0          10.1.47.4                              0 65000 i  *>                   10.1.17.1                              0 65000 i  *   192.168.11.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ?  *   192.168.12.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ?  *   192.168.13.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ? <OUTPUT_OMMITED>

But he prefer R1 as best path and hence install only 1 route in the routing table:

R7#  show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2        i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2        ia - IS-IS inter area, * - candidate default, U - per-user static route        o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP        a - application route        + - replicated route, % - next hop override Gateway of last resort is 10.1.17.1 to network 0.0.0.0 B*    0.0.0.0/0 [20/0] via 10.1.17.1, 00:07:30 B     192.168.11.0/24 [20/0] via 10.1.17.1, 00:07:30 B     192.168.12.0/24 [20/0] via 10.1.17.1, 00:07:30 B     192.168.13.0/24 [20/0] via 10.1.17.1, 00:07:30 <OUTPUT_OMMITED>

R7 is using the BGP best path selection rules for selecting the best path in the following manner:

	R1	R4
Weight (Highest)	0	0
Local preference (Highest)	100	100
Originate (Local)	No	No
AS-path (Shortest)	65000 65010	65000 65010
Origin code (IGP > EGP > Incomplete)	Incomplete	Incomplete
MED (Lowest)	0	0
Path (External>Internal)	External	External
Multipath	No	No
Router-ID (Lowest)	1.1.1.1	4.4.4.4

So R1 is the best path for R7.

Now let’s configure on R7 the command maximum-paths under the BGP process:

R7(config)#router bgp 65007 R7(config-router)#maximum-paths 4

Clearing the BGP process and let’s see the BGP table again:

R7#show ip bgp BGP table version is 56, local router ID is 192.168.73.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,               r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,               x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found      Network          Next Hop            Metric LocPrf Weight Path  *m  0.0.0.0          10.1.47.4                              0 65000 i  *>                   10.1.17.1                              0 65000 i  *m  192.168.11.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ?  *m  192.168.12.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ?  *m  192.168.13.0     10.1.47.4                              0 65000 65010 ?  *>                   10.1.17.1                              0 65000 65010 ? <OUTPUT_OMMITED>

Note the ‘m’ sign which means multipath, now let’s look on R7 routing table:

R7# show ip route Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP        D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area        N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2        E1 - OSPF external type 1, E2 - OSPF external type 2        i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2        ia - IS-IS inter area, * - candidate default, U - per-user static route        o - ODR, P - periodic downloaded static route, H - NHRP, l - LISP        a - application route        + - replicated route, % - next hop override Gateway of last resort is 10.1.47.4 to network 0.0.0.0 B*    0.0.0.0/0 [20/0] via 10.1.47.4, 00:02:35                 [20/0] via 10.1.17.1, 00:02:35 B     192.168.11.0/24 [20/0] via 10.1.47.4, 00:02:35                       [20/0] via 10.1.17.1, 00:02:35 B     192.168.12.0/24 [20/0] via 10.1.47.4, 00:02:35                       [20/0] via 10.1.17.1, 00:02:35 B     192.168.13.0/24 [20/0] via 10.1.47.4, 00:02:35                       [20/0] via 10.1.17.1, 00:02:35 <OUTPUT_OMMITED>

And the CEF entry:

R7#show ip cef 192.168.11.0/24 detail 192.168.11.0/24, epoch 0, flags rib only nolabel, rib defined all labels, per-destination sharing   recursive via 10.1.17.1     attached to FastEthernet0/0   recursive via 10.1.47.4     attached to FastEthernet0/1

Now R7 will load-share traffic, toward R10 networks, using both R1 and R4 on a per-destination algorithm (CEF default).

This time R7 has used the multipath rule in order to install both routers as best path:

	R1	R4
Weight (Highest)	0	0
Local preference (Highest)	100	100
Originate (Local)	No	No
AS-path (Shortest)	65000 65010	65000 65010
Origin code (IGP > EGP > Incomplete)	Incomplete	Incomplete
MED (Lowest)	0	0
Path (External>Internal)	External	External
Multipath	Yes	Yes
Router-ID (Lowest)	1.1.1.1	4.4.4.4

Now after configuring R9 and R8 in the same manner, we get load-sharing on outbound traffic on both the main and the branch sites, but we still got problems in the insert point:

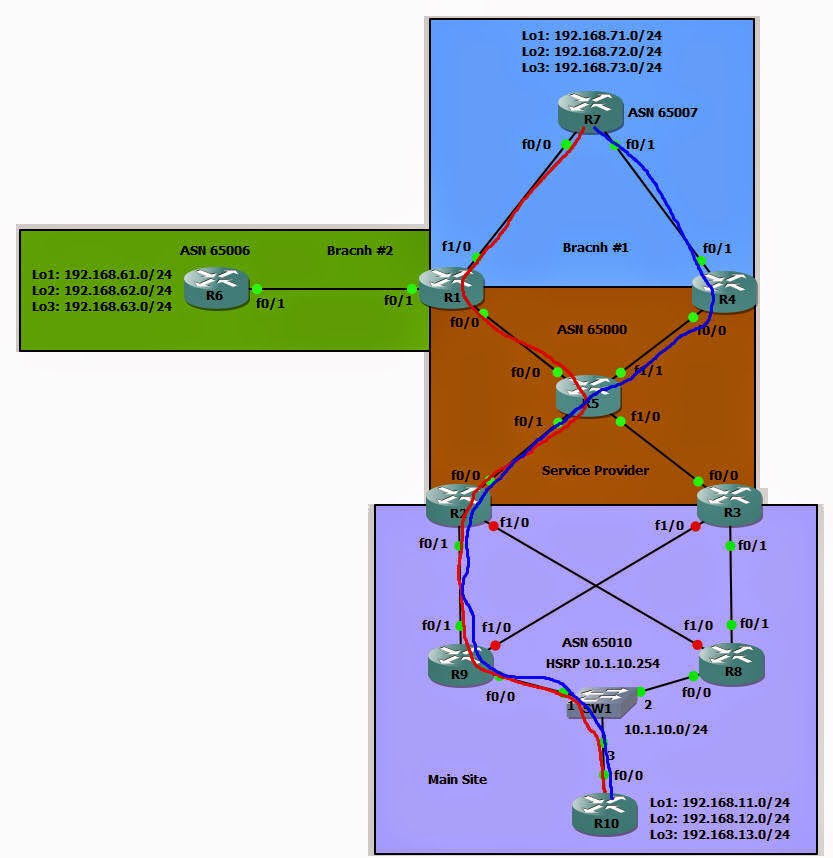

We can see that first flow will go through R7->R1->R5->R2->R9 (marked in red) and the second flow will go through R7->R4->R5->R2->R9 (marked in blue)

So we only managed to get load-share on the exit point of R7 but the traffic will reach R10 networks always through R9!

Let’s look on R1 BGP vpnv4 table:

R1#show ip bgp vpnv4 vrf RED BGP table version is 28, local router ID is 1.1.1.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,               r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,               x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found      Network          Next Hop            Metric LocPrf Weight Path Route Distinguisher: 1:100 (default for vrf RED)      0.0.0.0          0.0.0.0                                0 i  * i 192.168.11.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ?  * i 192.168.12.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ?  * i 192.168.13.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ? <OUTPUT_OMMITED>

We can see clearly that we have the same problem on the PE routers which follow the BGP best path selection rules and select only 1 best path per prefix.

Let’s fix this problem by issuing the following command on all PE routers:

Rx#conf t Enter configuration commands, one per line.  End with CNTL/Z. Rx(config)#router bgp 65000 Rx(config-router)#address-family ipv4 vrf RED Rx(config-router-af)#maximum-paths eibgp 4

Note that this time I used ‘eibgp’ parameter on the command maximum-paths to allow multi-paths from eBGP and iBGP.

Now let’s look again on R1 BGP vpnv4 table:

R1#show ip bgp vpnv4 vrf RED BGP table version is 34, local router ID is 1.1.1.1 Status codes: s suppressed, d damped, h history, * valid, > best, i - internal,               r RIB-failure, S Stale, m multipath, b backup-path, f RT-Filter,               x best-external, a additional-path, c RIB-compressed, Origin codes: i - IGP, e - EGP, ? - incomplete RPKI validation codes: V valid, I invalid, N Not found      Network          Next Hop            Metric LocPrf Weight Path Route Distinguisher: 1:100 (default for vrf RED)      0.0.0.0          0.0.0.0                                0 i  *mi 192.168.11.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ?  *mi 192.168.12.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ?  *mi 192.168.13.0     3.3.3.3                  0    100      0 65010 ?  *>i                  2.2.2.2                  0    100      0 65010 ? <OUTPUT_OMMITED>

Now we got the required result:

Currently I’m using IOS 15.3 and the command ‘show ip cef <PREFIX> internal’ doesn’t show the hash table as in version 12.3, so after doing a little search I found this following command which state where each source and destination exit point:

R9#show ip cef exact-route 192.168.11.1 192.168.71.1 192.168.11.1 -> 192.168.71.1 => IP adj out of FastEthernet1/0, addr 10.1.39.3 R9#show ip cef exact-route 192.168.12.1 192.168.71.1 192.168.12.1 -> 192.168.71.1 => IP adj out of FastEthernet1/0, addr 10.1.39.3 R9#show ip cef exact-route 192.168.13.1 192.168.71.1 192.168.13.1 -> 192.168.71.1 => IP adj out of FastEthernet0/1, addr 10.1.29.2 R9#show ip cef exact-route 192.168.13.1 192.168.72.1 192.168.13.1 -> 192.168.72.1 => IP adj out of FastEthernet0/1, addr 10.1.29.2 R9#show ip cef exact-route 192.168.13.1 192.168.73.1 192.168.13.1 -> 192.168.73.1 => IP adj out of FastEthernet1/0, addr 10.1.39.3

R9 will use interface Fa0/1 (hence through R2) for source 192.168.13.1 to destination 192.168.71.1 and interface Fa 1/0 (through R3) for source 192.168.13.1 to destination 192.168.73.1.
