Policy-Based Routing (PBR) - Configuration

Here is the following scenario:

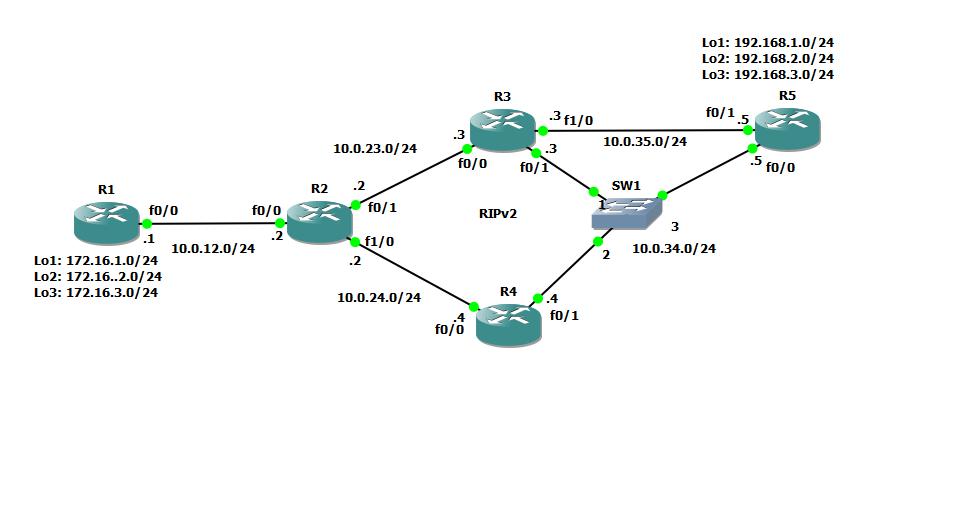

R1 configured with 3 networks:

Loopback 1 – 172.16.1.0/24

Loopback 2 – 172.16.2.0/24

Loopback 3 – 172.16.3.0/24

R5 configured with 3 networks:

Loopback 1 – 192.168.1.0/24

Loopback 2 – 192.168.2.0/24

Loopback 3 – 192.168.3.0/24

RIPv2 is running on R2-R3-R4 and R5 on all interfaces and configured with only one path (maximium-paths 1).

R1 is configured with default route to R2 (10.0.12.2) while R2 is configured with static routes to R1 networks (172.16.x.0/24) and redistribute them using redistribute static on RIP.

So when sending an ICMP, from R1 to R5, it will go through R2 and R4:

R1#traceroute 192.168.1.1 Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 36 msec 48 msec 20 msec   2 10.0.24.4 56 msec 52 msec 28 msec   3 10.0.34.5 76 msec *  76 msec

Now let’s assume that we want network 172.16.1.0 to reach R5 through R3, without modifying anything in the RIP domain, for that purpose we will use policy routing on R2 as followed:

First we will configure an access-list to match our criteria:

ip access-list standard NET172-16-1-0  permit 172.16.1.0 0.0.0.255

Then we will configure a route-map to do select match-set action:

route-map RM_NET1_R3_R5 permit 10  match ip address NET172-16-1-0  set ip next-hop 10.0.23.3

And apply this route-map on the interface toward R1:

interface FastEthernet0/0  ip address 10.0.12.2 255.255.255.0  ip policy route-map RM_NET1_R3_R5  speed 100  full-duplex

Note that unlike service-policies the ip policy doesn’t have direction, input or output, it relays on the action taken in the route-map which depend on the ACL configured.

The result:

R1#traceroute 192.168.1.1 source 172.16.1.1 Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 48 msec 40 msec 20 msec   2 10.0.23.3 40 msec 36 msec 28 msec   3 10.0.34.5 116 msec *  60 msec R1#traceroute 192.168.1.1 source 172.16.2.1 Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 36 msec 44 msec 24 msec   2 10.0.24.4 48 msec 44 msec 20 msec   3 10.0.34.5 72 msec *  60 msec

While sending an ICMP with 172.16.1.1 to R5 it will go through R3, all other networks will go through R4

Reliable Policy-Based Routing

Now let’s say that we want HTTP traffic (port 80) from R1 to R5 to go through R3 while all other traffic from this network will go through R4

Now we will configure extended ACL:

ip access-list extended NET172-16-2-0  permit tcp 172.16.2.0 0.0.0.255 any eq www

Then we will add to the route-map another match-set condition:

route-map RM_R1_TO_R5 permit 20  match ip address NET172-16-2-0  set ip next-hop 10.0.23.3

No need to add the ip policy to the interface as it’s already configured

The result:

R1#traceroute 192.168.1.1 source 172.16.2.1 Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 48 msec 36 msec 20 msec   2 10.0.24.4 32 msec 40 msec 40 msec   3 10.0.34.5 80 msec *  76 msec

While connecting to 192.168.1.1 using telnet port 80:

<policy-route_01.img>

Next we will add backup route to this policy by configuring default-route in case of R3 failure by adding the following lines into the route-map:

route-map RM_R1_TO_R5 permit 20  match ip address NET172-16-2-0  set ip next-hop 10.0.23.3  set ip default next-hop 10.0.24.4  set ip next-hop verify-availability

The command set ip default next-hop sets the next-hop to 10.0.24.4 only if no route can be found first in the routing table.

The command set ip next-hop verify-availability check and validate R3 reachability using CDP protocol, in case of failure to reach R3 normal routing decision will take place.

After disable CDP run on R3, R2 sees only R4 on the CDP neighbors table:

R2#sh cdp neighbors Capability Codes: R - Router, T - Trans Bridge, B - Source Route Bridge                   S - Switch, H - Host, I - IGMP, r - Repeater Device ID        Local Intrfce     Holdtme    Capability  Platform  Port ID R4               Fas 1/0            174        R S I      2691      Fas 0/0

Now trying to telnet 192.168.1.1 with source 172.16.2.1 while debugging the policy route with the command debug ip policy on R2:

*Mar  1 09:13:53.401: IP: s=172.16.2.1 (FastEthernet0/0), d=192.168.1.1, len 28, FIB policy rejected(explicit route) - normal forwarding

We can see that ip policy route is rejected and normal route is being used.

In the third scenario we will use IP-SLA and track object as another option for reliable policy-based routing, in this way we can track a non-directly connected hosts.

In the following example we will track interface f0/1 on R5

First configure an IP-SLA:

ip sla monitor 1  type pathEcho protocol ipIcmpEcho 10.0.35.5  frequency 5 ip sla monitor schedule 1 life forever start-time now ! track 1 rtr1

Take note that network 10.0.35.0/24 is filtered from R2 routing table, route to this prefix is based on static route else R2 could find a way through R4 or R3 switch interface.

Then the configuration of the new ACL and route-map:

ip access-list standard NET172-16-3-0  permit 172.16.3.0 0.0.0.255 ! route-map RM_R1_TO_R5 permit 30  match ip address NET172-16-3-0  set ip next-hop verify-availability 10.0.23.3 1 track 1  set ip default next-hop 10.0.23.4

Verification:

R1#traceroute 192.168.1.1 source 172.16.3.1 Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 40 msec 36 msec 16 msec   2 10.0.24.4 48 msec 36 msec 24 msec   3 10.0.34.5 72 msec *  104 msec

After shutting down interface f0/1 on R5:

R1#traceroute 192.168.1.1 source 172.16.3.1                                  Type escape sequence to abort. Tracing the route to 192.168.1.1   1 10.0.12.2 40 msec 52 msec 16 msec   2 10.0.23.3 52 msec 44 msec 20 msec   3 10.0.35.5 72 msec *  116 msec

IP-SLA can help us track and measure different parameters on our network and to configure conditional action based on the results but currently it’s out of the scope of this post.

Take note that starting from IOS 12.0 PBR is supported in the Cisco Express Forwarding (CEF) switching path. CEF-switched PBR has better performance and, therefore, is the optimal way to perform PBR on a router.

More information can be found in the following link:

http://www.cisco.com/en/US/docs/ios/12_0/qos/configuration/guide/qcpolicy.html#wp5666
